- 產品型號：68925527
- 頻率：12.288MHz
- 尺寸：11.4*4.8mm
- 產品介紹：ECS-122.8-S-5PX-TR,CSM-7X,ECS石英晶體振蕩器,石英晶振,SMD晶振，石英晶振,，ECS晶振，型號：CSM-7X，編碼為：ECS-122.8-S-5PX-TR，頻率：12.288MHz,負載電容：2...
-

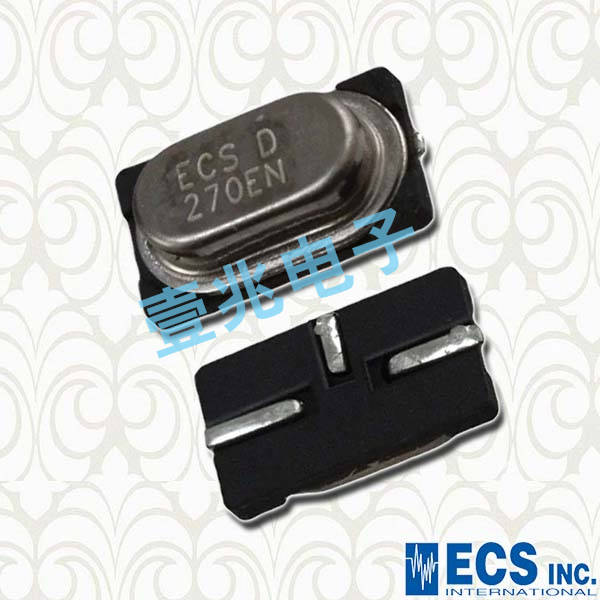

ECS-122.8-S-5PX-TR,CSM-7X,ECS石英晶體振蕩器
ECS-122.8-S-5PX-TR,CSM-7X,ECS石英晶體振蕩器,石英晶振,SMD晶振，石英晶振,，ECS晶振，型號：CSM-7X，編碼為：ECS-122.8-S-5PX-TR，頻率：12.288MHz,負載電容：20pf，尺寸：11.4*4.8mm,SDM晶振，相機晶振，石英晶體振蕩器，CSM-7X是一個低成本的SMD晶體的一個極好的選擇。CSM-7X（5PX）的外殼高度為4.3 mm。在一個電阻焊縫金屬封裝中。較低的輪廓包裝高度，最大3.2 mm。可與（5PLX）包，應用于移動通信設備，電波時鐘，數字家電，多媒體設備車載等用途。
.jpg)
ECS-122.8-S-5PX-TR,CSM-7X,ECS石英晶體振蕩器
| PARAMETERS | CONDITIONS | CSM-7X-3L | UNITS | |||||||||||||||
| MIN | TYP | MAX | ||||||||||||||||
| Frequency Range | fo | 3.57 | 70.00 | MHz | ||||||||||||||
| Frequency Tolerance | at +25°C | ± 30 | ppm | |||||||||||||||
| Frequency Stability | Standard -10 to +70°C | ± 50 | ppm | |||||||||||||||
| Shunt Capacitance | Co | 7 | pF | |||||||||||||||
| Load Capacitance (CL) | Specify in P/N | 10 | 20 | Series | pF | |||||||||||||
| Drive Level | 500 | µW | ||||||||||||||||
| Operating Temperature | -10 | +70 | °C | |||||||||||||||
| Storage Temperature | -55 | +125 | °C | |||||||||||||||
| Aging (Per Year) | @ +25°C ±3°C | ±5 | ppm | |||||||||||||||
.jpg)

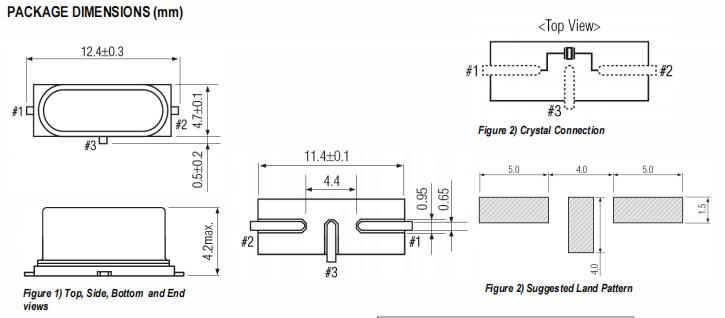

ECS-122.8-S-5PX-TR,CSM-7X,ECS石英晶體振蕩器
.png)
| ECS-135.6-12-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 13.56MHz |
| ECS-120-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12MHz |
| ECS-120-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12MHz |
| ECS-120-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12MHz |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12.288MHz |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12.288MHz |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12.288MHz |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | 貼片晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
.jpg)
