- 產品型號：77521981
- 頻率：32.768kHz
- 尺寸：8*3.6mm
- 產品介紹：ECS-.327-6-17X-TR,ECX-306X,32.768kHz,ECS晶振,石英晶振,貼片晶振，石英晶振,ECS晶振，四腳晶振，型號：ECX-31B系列晶振，編碼為：ECS-.327-7-34B-TR，頻率：32....
-

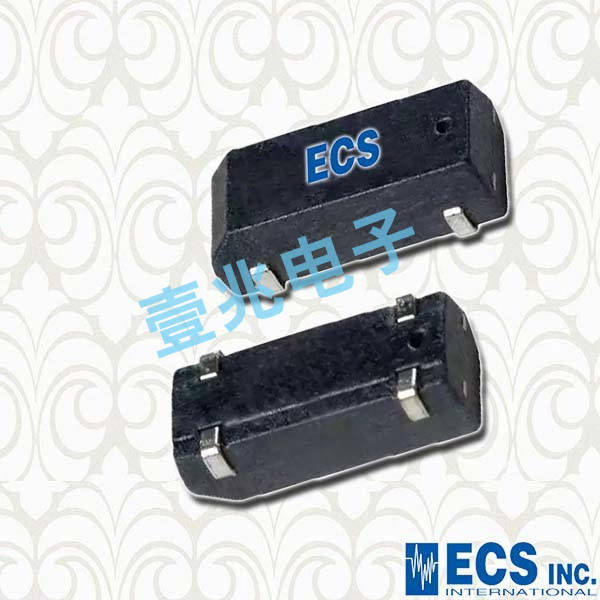

ECS-.327-6-17X-TR,ECX-306X,8038mm,ECS晶振
ECS-.327-6-17X-TR,ECX-306X,32.768kHz,ECS晶振,石英晶振,貼片晶振，石英晶振,，ECS晶振，四腳晶振，型號：ECX-31B系列晶振，編碼為：ECS-.327-7-34B-TR，頻率：32.768KHz,負載電容：20pf，尺寸：8*3.8mm,SDM晶振，智能手機晶振，石英晶體振蕩器，ECX-306X是一款緊湊的SMD調諧叉晶體。3.8 x 8.0 x 2.5 mm的封裝是當今SMD制造環境的理想選擇，應用于通信設備，數字家電，智能電網，無線晶振，多媒體設備車載等用途。
.jpg)
ECS-.327-6-17X-TR,ECX-306X,8038mm,ECS晶振
| PARAMETERS | CONDITIONS | ECX-306X | UNITS | |||||||||||||
| MIN | TYP | MAX | ||||||||||||||
| Frequency | FO | 32.768 | KHz | |||||||||||||
| Frequency Tolerance | @ +25°C | ± 20 | ppm | |||||||||||||
| Load Capacitance | Specify in P/N | 12.5 | pF | |||||||||||||
| Drive Level | DL | 1.0 | µW | |||||||||||||
| Equivalent Series Resistance | R1 | 50K | ? | |||||||||||||
| Turnover Temperature | +20 | +25 | +30 | °C | ||||||||||||
| Temperature Coefficient | -0.028 | -0.034 | -0.040 | ppm/°C² | ||||||||||||
| Shunt Capacitance | Co | 1.35 | pF | |||||||||||||
| First Year Aging | +25°C ±3°C | ± 3 | ppm | |||||||||||||
| Operating Temperature | Topr | -40 | +85 | °C | ||||||||||||
| Storage Temperature | Tstg | -55 | +125 | °C | ||||||||||||
| Insulation Resistance | @ 100V DC | 500M | ? | |||||||||||||
.jpg)

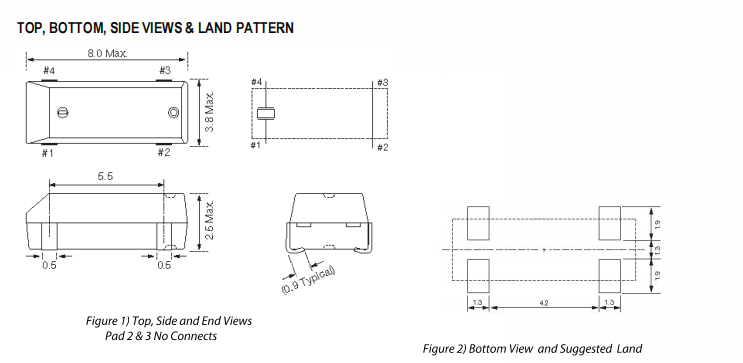

ECS-.327-6-17X-TR,ECX-306X,8038mm,ECS晶振
.png)
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-80-18-5PX-JEM-TR | SMD晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz |
| ECS-160-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16MHz |
| ECS-160-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16MHz |
| ECS-160-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16MHz |
| ECS-163.8-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16.384MHz |
| ECS-163.8-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16.384MHz |
